PUNAISGD Outdoor Fiber Optic Cable Armored 24 48 Core GYTS Fiber Optic Cable

Name: PUNAISGD Outdoor Fiber Optic Cable Armored 24 48 Core GYTS Fiber Optic Cable
Brand: PUNAISGD
Price: 1 USD

Quality PUNAISGD Outdoor Fiber Optic Cable Armored 24 48 Core GYTS Fiber Optic Cable wholesale

Brand Name : PUNAISGD

Model Number : GYTS-288B1.3

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 1000000

Delivery Time : 7days

Packaging Details : wooden drum

Type : GYTS-288B1.3

Number of Conductors : 288B1.3

armored : steel wire and armored

Application : duct

Outer Jacket Material : PE(Black)/HDPE/LSZH

Armor Layer : Steel Tape

Package : Wooden Drum

Fiber type : G652D,single mode or multi mode,50/125,62.5/125,OM3

Fiber color : Blue,Orange,Brown,Aqua,Grey

Name : Outdoor Fiber Optic Cable

Contact Now

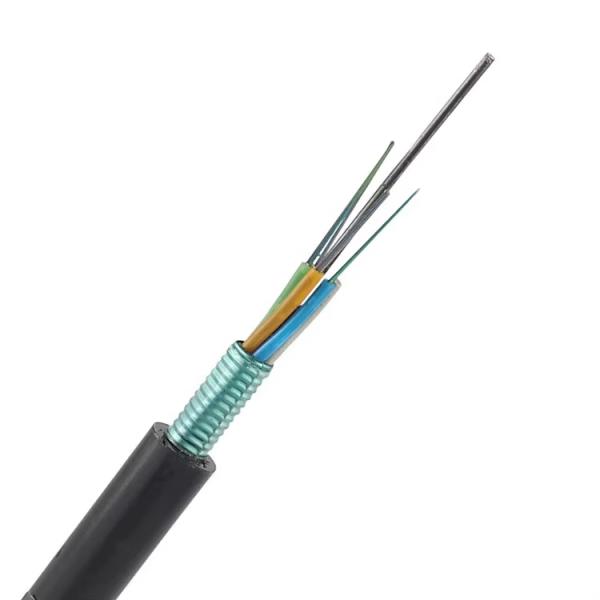

Outdoor Fiber Optic Cable Armored 24 48 Core GYTS Fiber Optic Cable

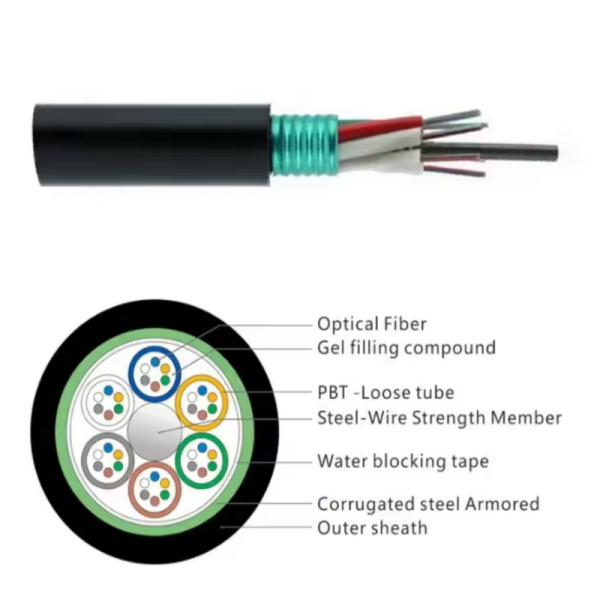

The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the metallic strength member to form the cable core. The steel tape(CST) is longitudinally armored over the cable core, which is filled with water blocking compound. Finally a PE jacket is extruded.

Fiber: 2-288 fibers
Loose tube gel-filled
Armor: Corrugated steel tape
Central Strength Member: FRP or Steel Wire
Outer Jacket:
Black UV-and moisture-resistant polyethylene(PE)

Feature:

Loose tube gel-filled construction for superior fiber protection. Corrugated steel tape armorto protect cable from mechanical damage and rodent protection.

UV and moisture-resistant design.
Applications
Backbones and Access.
Installed in ducts, underground conduits.

Dimensions of Cable Constructions

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.4	8.5±0.3	75
6	1+5	6	1.85±0.1	1.4/1.4	1.4	8.5±0.3	75
8	1+5	8	1.9±0.1	1.4/1.4	1.4	8.5±0.3	75
12	1+5	6	1.9±0.1	1.4/1.4	1.4	8.5±0.3	75
24	1+5	6	1.9±0.1	1.4/1.4	1.4	8.5±0.3	75
36	1+6	12	1.95±0.1	1.5/1.5	1.6	8.8±0.3	85
48	1+5	12	1.95±0.1	1.5/1.5	1.6	9.3±0.3	90
60	1+5	12	1.95±0.1	1.6/1.6	1.6	9.3±0.3	90
72	1+6	12	1.95±0.1	2.0/2.0	1.6	9.6±0.3	95
96	1+8	12	1.95±0.1	1.4/3.2	1.6	11.5±0.3	120
144	1+12	12	1.95±0.1	2.0/5.7	1.8	14.2±0.3	185
216	1+6+12	12	1.95±0.1	2.0/2.0	1.8	14.5±0.3	200
288	1+9+15	12	1.95±0.1	2.0/3.7	1.8	16.2±0.3	240
