Small ADSS Fiber Optic Cable 80m G652D 12 Core Fibre Optic Cable ASU Cable Single Mode

Name: Small ADSS Fiber Optic Cable 80m G652D 12 Core Fibre Optic Cable ASU Cable Single Mode
Brand: PUNAISGD
Price: 1 USD

Brand Name : PUNAISGD

Model Number : ASU-8B1.3

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 100000

Delivery Time : 7days

Packaging Details : wooden drum

Name : ADSS Fiber Optic Cable

Type : ASU-8B1.3

Application : Telecom Comunication

Laying Mode : Aerial

Jacket Material : PE

Sample : Free

Installation : Self-supporting Aerial

Central Strength : FRP

Warranty : 25 years

Fiber Type : Single-mode or Multimode

Flame Retardant : Yes

Production Capacity : 200km Per Day

Structure : Loose tube

Contact Now

ADSS Fiber Optic Cable 80m G652D 12 Core Fibre Optic ASU Cable Single Mode

ASU optical cable is designed with high-quality materials that enhance its durability and performance in outdoor environments. The core is typically composed of multiple optical fibers, each housed within a protective buffer tube that’s filled with a gel to block water ingress. These elements are surrounded by a tough outer jacket made from materials like polyethylene (PE), which provides resistance to UV light, chemicals, and physical abrasions.

Product Features

·Small Size and Ligth Weight
·Two FRP as strength member to provide good tensile performance
·Gel Filled or gel free , good waterproof performance
·Low price ,high fiber capacity
·applicable for short span aerial and duct installation

Small ADSS Fiber Optic Cable 80m G652D 12 Core Fibre Optic Cable ASU Cable Single Mode

PRODUCT SPECIFICATIONS

ITEMS	UNITS	SPECIFICATION
Fiber Type		G652D
Attenuation	dB/km	Before Cable	After Cable
		1310nm ≦ 0.34 1550nm ≦ 0.21	1310nm ≦ 0.35 1550nm ≦ 0.22
Chromatic Dispersion	ps/nm.km	1310nm ≦ 3.5 1550nm ≦ 18 1625nm ≦ 22
Attenuation Uniformity	dB/km	0.1
Point Discontinuities	dB	≤ 0.05
Zero Dispersion Slope	ps/n㎡.km	0.093
Zero Dispersion Wavelength	nm	1300~1324
PMDQ Link Design 1550	ps/km1/2	≤ 0.1
Cut-off Wavelength(λcc)	nm	≤ 1260
Attenuation vs. Bending(60mm*100turns)	dB	≤ 0.1 at 1625 nm (60mm * 100turns)
Mold Field Diameter	μm	9.2±0.4 @ 1310nm
		10.4±0.5@ 1550nm
Core-Clad Concerntricity	μm	≤ 0.6
Cladding Diameter	μm	125 ± 1
Cladding Non-circularity	%	≤ 1
Coating Diameter	μm	245 ± 5
Proof Test	Gpa	≥ 0.69

Optical Characteristics

Part code	ASU-120-6F
Number of Fibers	Unit	6	8	12	24
Number of fiber in tube	Nos	6	8	12	24
Number of loose tube	Nos	1	1	1	1
strength member	Material	FRP 2×2.2mm	FRP 2×2.2mm	FRP 2×2.2mm	FRP 2×2.3mm
Loose tube	Material	PBT
Loose tube	Size	2.2mm
Outer sheath	Material	HDPE	HDPE	HDPE	HDPE
Cable nominal Diameter	MM ±0.2	7.2	7.2	7.2	8.0
Cable nominal weight	Kg/Km ±5	45	45	45	47
Max. working tension	N	1500	1500	1500	1500
Max. crush resistance	N	1000 (Short term) / 600 (Long term)
Min. bending radius		At full load 20 x Cable OD (including poles) At no load 15 x Cable OD
Temperature range		Installation -0 -> +50 Operation -10 -> +70

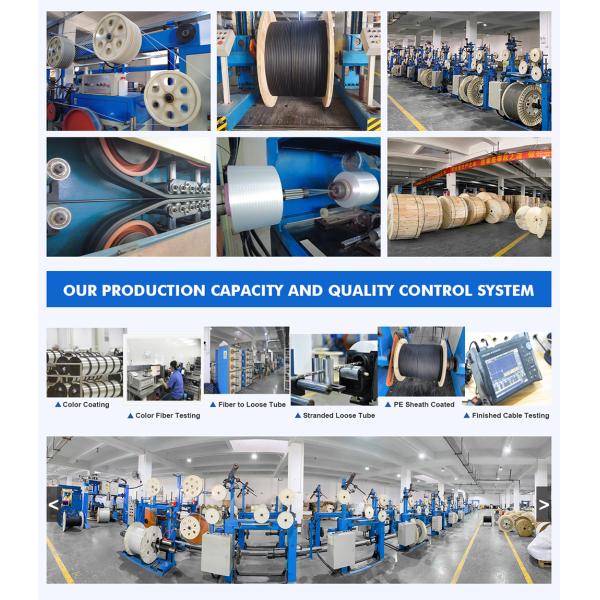

Our Factory

FAQ

1. Why choose us?
We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%). There are total about 11-50
people in our factory.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.

4. Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
